1. Launching the SciQt OpendTect plug-in

This sub-section describes how to launch SciQt from within OpendTect.

  1. From within OpendTect main window click menu Analysis->Attributes->3D... or click the icon to pop up the Attribute Set window (see figure below).

    [For a 2D survey, use the Analysis->Attributes->2D... option.]
  2. Select Coloured Inversion in the Attribute type list to show the parameters required for this attribute.

  3. Click Select... to the right of the Input Data label to pop-up a dialog to allow the input volume to be selected.

  4. It is recommended that you don't supply a name for the SciQt wavelet at this time.

  5. Now click the Analyse and Create... to launch the SciQt plug-in.

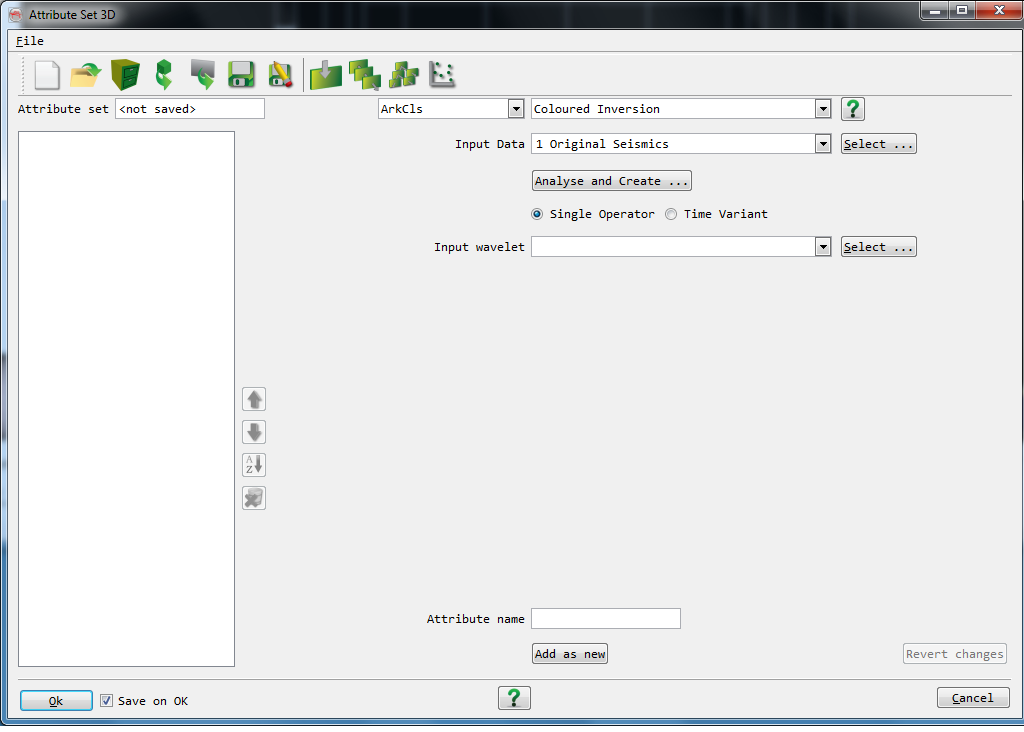

Figure 3.1. Attribute Set used to launch SciQt

Attribute Set used to launch SciQt

Once launched the SciQt main window will be displayed. This window is the main interface to the application. The main window GUI consists of (from top to bottom): a menu area, an icon area, a chart area and a status area (see figure below). The chart area, which occupies the large scrollable central area of the main window, is used to display various charts of spectra and time data to provide feedback to the Interpretation Geoscientist in his/her quest to design a SciQt operator.

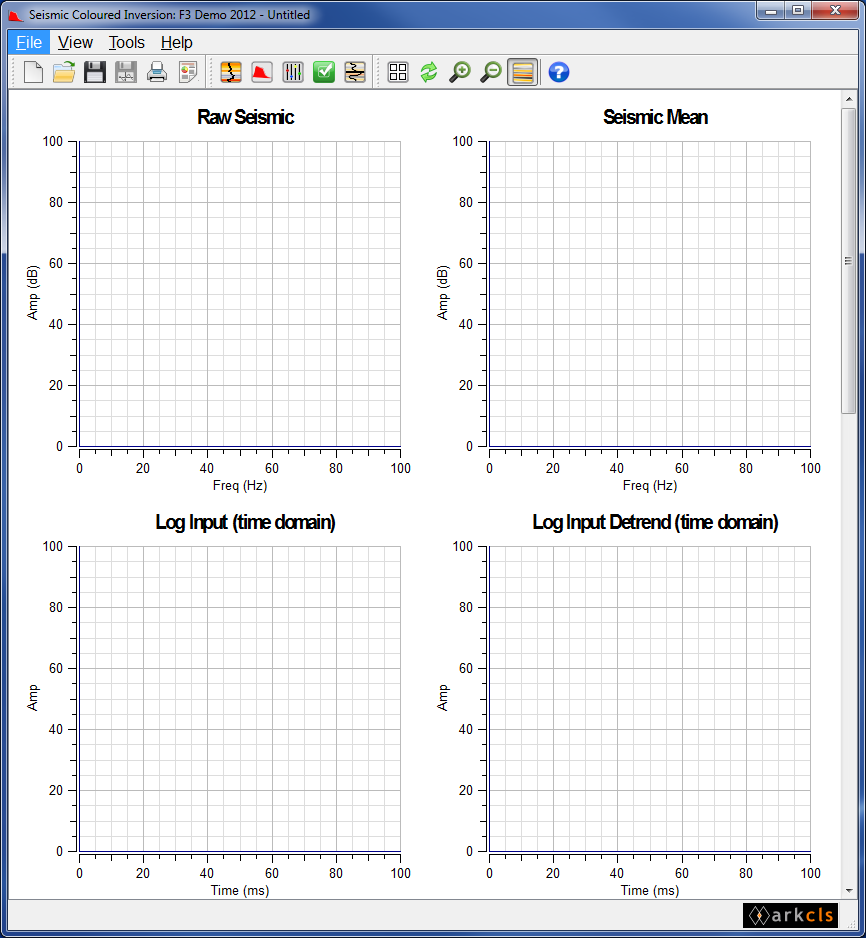

Figure 3.2. Seismic Coloured Inversion main window

Seismic Coloured Inversion main window
